Spiral Cylindrical Torsion Springs

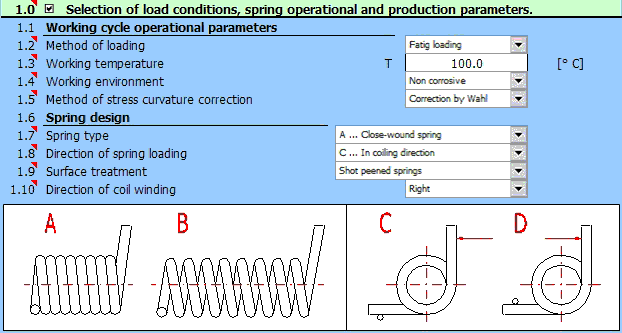

The calculation is intended for the purposes of geometric and strength designs of spiral cylindrical torsion springs made of wires and rods in circular sections, exposed to a static or cyclic loading. In addition to the design of geometric and strength parameters, the calculation works with CAD systems.

The application provides solutions for the following tasks:

  • Automatic design of the spring.
  • Selection of the optimal design of the spring with respect to strength, geometry and weight.
  • Static and dynamic strength tests.
  • Calculation of working forces of a spring of known production and mounting dimensions.
  • Calculation of mounting dimensions for a known loading and production parameters of the spring.
  • Support for Cold formed springs and Hot formed springs.
  • The application includes a table of commonly used spring materials according to ISO, EN, ASTM/SAE, DIN, BS, JIS and others.
  • Support of 2D and 3D CAD systems.

The calculation is based on data, procedures and algorithms from specialized literature and the standards EN 13906-2, and DIN 2088.

Design of Spiral Cylindrical Torsion Springs Spiral Cylindrical Torsion Springs - 2D and 3D Model
