The calculation is used for geometrical and strength designs and worm gearing check, including the generation of precise 3D models.
The program solves the following tasks:
- Preliminary design of the gearing.
- Automatic transmission design with minimum input requirements.
- Design for specified safety coefficients.
- Calculation of a table of proper solutions.

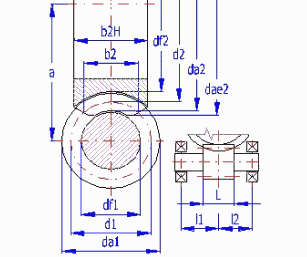

- Calculation of complete geometric parameters (including center distance adjustment, etc.).
- Calculation of strength parameters, safety coefficients (SW, SH, Sδ, SF).
- Auxiliary calculations (heating, shaft design etc.).
- Possibility of saving, loading, and comparing different solutions within the calculation.

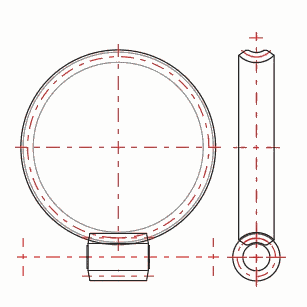

- Support for 2D and 3D CAD systems.

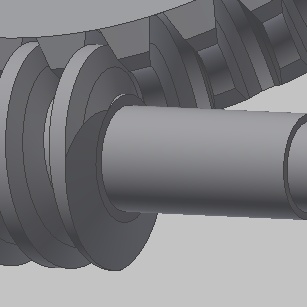

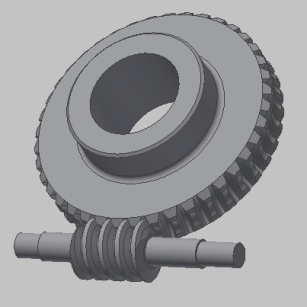

- Creation of accurate 3D models (gear manufacturing).
The calculations use procedures, algorithms and data from standards ANSI, ISO, DIN, BS and specialized literature.
List of standards: DIN 3996:2019, DIN 3974-1, DIN 3974-2, DIN 3975-1:2002, DIN 3975-2:2002, ISO 10828:2024, ISO/TS 14521:2020, ČSN 01 4750:2005, ANSI/AGMA 6134-C21, ANSI/AGMA 6034-B92, ANSI/AGMA 6022-D19
Literature:
[01] Industrial Press, Inc.: Machinery’s Handbook 26th Edition
[02] McGraw-Hill: Shigley’s Mechanical Engineering Design, Eighth Edition
[03] Roloff /Matek: Maschinenelemente, 21. Auflage
[04] AGMA, TECHNICAL PAPERS: DIN 3996: A New Standard for Calculating the Load Capacity of Worm Gears
[05] SVATOPLUK ČERNOCH: Strojně technická příručka
[06] RUDOLF KŘÍŽ, PAVEL VÁVRA: Strojírenská příručka
