The module is designed for calculations of straight, maximum three times static indefinite beams with constant axis-symmetrical profiles.
The software solves the following tasks:

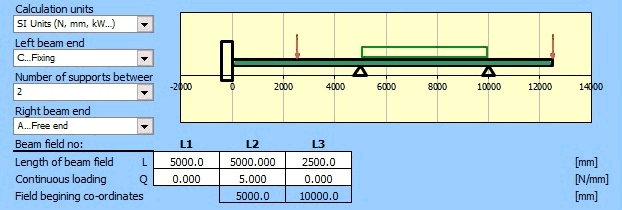

- Simple definition of a beam type and its loading with visual check.

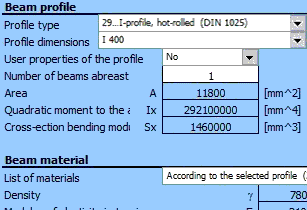

- Area characteristics calculation of 20 cross sections types.
- Reactions in supports calculation.
- Calculation of minimum / maximum bending moment, stress and deflection of a beam.

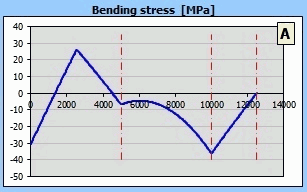

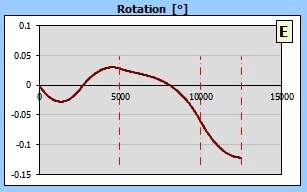

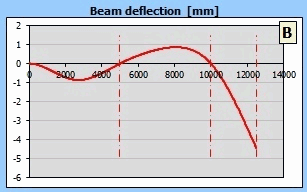

- Calculation and graphic illustration of the moment, stress, deflection and bending angle of the loaded beam.
- The application includes a table of materials and a table of area characteristics of W-, S-, C-, L- profiles according to ANSI/AISC and I-, U-, L- a T- profiles according to DIN/ISO.
The calculation is based on data, procedures, algorithms and data from specialized literature and AGMA, ISO, DIN and BS standards.
List of standards: DIN 1025, DIN 1026, DIN 1028, DIN 1029, DIN 1024, AISC W-Shape, AISC S-Shape, AISC C-Shape, AISC L-Shape, AISC L-Shape and U-Shape, and others.
