Products > Belt / chain transmissionOnline HelpUser Interface (pdf)User Interface (gif)

The calculation is developed for geometrical designs of belt / chain transmissions with more sprocket wheels. The application provides designs for the following basic tasks.

  • Calculation of the necessary length of the belt (chain) using known positions and diameters of sprocket wheels
  • Achieving the desired (table) length of the belt / chain using a change in the position of the selected sprocket wheel.
  • Calculation of geometry (angles of wrapping, numbers of teeth in engagement, axis distances, etc.)
  • Calculation of the radial force acting on the sprocket wheel axis.

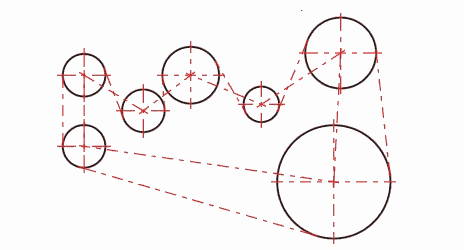

  • The application works with 2D CAD systems.
